The Eventuri Carbon Turbo Inlet Tube for the Toyota GR Yaris and GR Corolla is engineered to reduce restriction between the intake system and turbocharger, increasing available airflow volume while maintaining a smooth path into the compressor inlet. Designed for the G16E-GTS platform, the enlarged carbon turbo tube improves turbo response, helps the engine achieve peak boost earlier in the RPM range, and supports measurable gains in both mid-range torque and peak power.
During development, Eventuri focused on two key areas: increasing the internal air volume available immediately before the turbocharger and improving airflow through the critical lower bend of the factory inlet. The OEM turbo tube is particularly restrictive in this section, limiting the volume of air the turbocharger can draw from under load. Eventuri increased the internal volume from approximately 1,300 cm³ to 2,200 cm³, an increase of nearly 70%, while reshaping the lower section to create a larger and less restrictive air reservoir ahead of the turbocharger.
This increased volume allows the turbocharger to draw from a larger supply of air with less restriction, reducing wastegate duty cycle and improving throttle response. Dyno testing demonstrated gains of up to 14 whp and 19 ft-lb of torque through the mid-range, with gains of approximately 9 whp and 9 ft-lb at peak RPM.

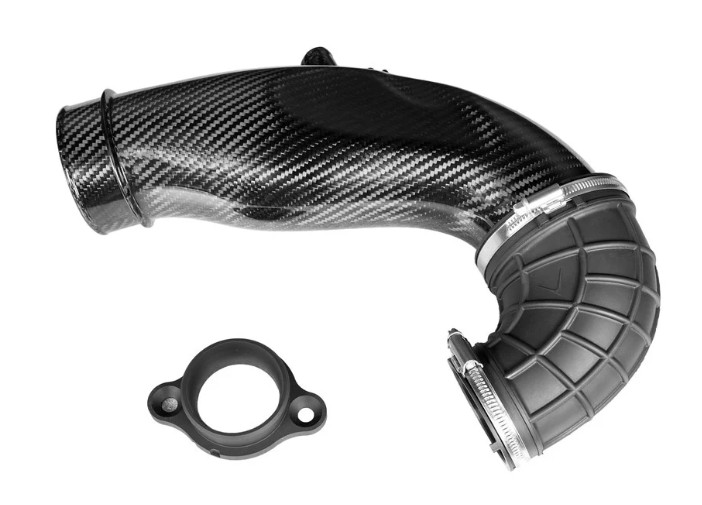

The main inlet tube is manufactured from rigid pre-preg carbon fiber to resist deformation under the vacuum generated by the turbocharger. The carbon tube connects to a bespoke nitrile elbow and a precision CNC-machined aluminum flange that bolts directly to the factory turbocharger inlet. This combination provides a durable, high-flow connection while preserving precise fitment throughout the assembly.
Eventuri also designed the GR Yaris / GR Corolla turbo inlet with future turbocharger upgrades in mind. The CNC-machined turbo flange is modular, allowing the inlet system to be adapted for compatible larger hybrid turbochargers by replacing the flange rather than the complete carbon tube. Alternative flange options are available separately as supported applications are introduced.
Performance Gains
Up to 14 whp and 19 ft-lb of torque through the mid-range
Approximately 9 whp and 9 ft-lb at peak RPM
Internal inlet volume increased from approximately 1,300 cm³ to 2,200 cm³
Nearly 70% increase in available air volume compared to the factory turbo inlet
Reduced inlet restriction supports earlier peak boost and improved throttle response
Product Details
Designed for Toyota GR Yaris and GR Corolla
Engineered for the G16E-GTS turbocharged engine
Pre-preg carbon fiber primary inlet tube
Enlarged internal volume for reduced turbo inlet restriction
Revised lower bend geometry ahead of the turbocharger
Bespoke nitrile turbo inlet elbow
Precision CNC-machined aluminum turbo flange
Modular flange design supports compatible hybrid turbocharger applications
Nearly 70% More Inlet Volume
Internal volume increases from approximately 1,300 cm³ to 2,200 cm³, providing the turbocharger with a larger, less restrictive air supply.
Proven Performance Gains
Dyno tested with gains of up to 14 whp and 19 ft-lb of torque through the mid-range, with 9 whp and 9 ft-lb gained at peak RPM.
Pre-Preg Carbon Construction
Rigid pre-preg carbon fiber construction resists deformation under turbocharger vacuum while maintaining a smooth, high-volume airflow path.
